Crt Shader

6/26/2025

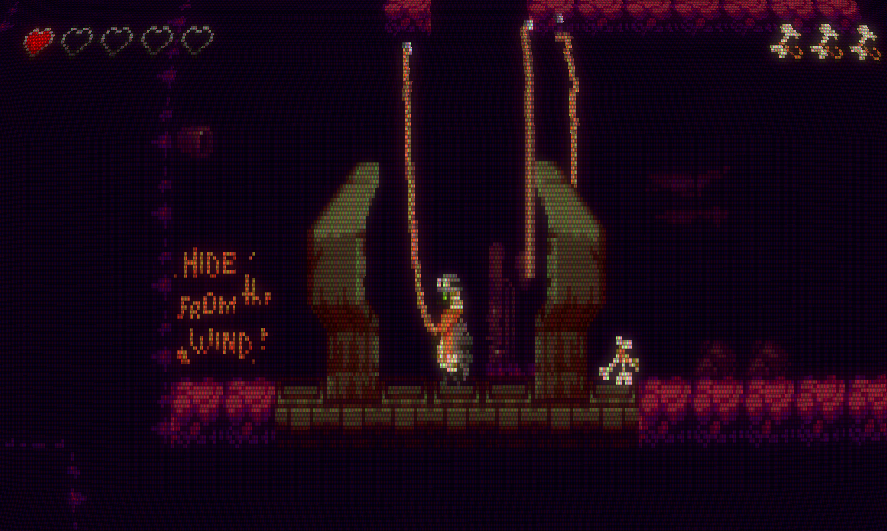

What’s good! Today I’m going to be talking about a fun little project I took on for the development of Brittleheart: a very basic crt shader. First, I’ll go over the rationale behind its inclusion and implementation, and then I’ll go over the actual methodology (I’ll even post the source code and texture that I used).

I wanted to create a screen effect like this one because one of the main goals in terms of mood that we’ve established for the game is that of loneliness and isolation. I can’t quite put my finger on why at the moment (maybe it has something to do with a childhood spent playing more video games than I should have), but the image of sitting in a dark room staring at a CRT monitor evokes such a strong feeling of isolation that I felt it was a perfect fit.

That said, I know that CRT shaders are fairly divisive, so I wanted the implementation to be as unobtrusive as possible, and of course I also plan to add a slider for toning down the effect.

Anyway, the look can be split into 4 components, and now I’ll go over how I accomplished each of them.

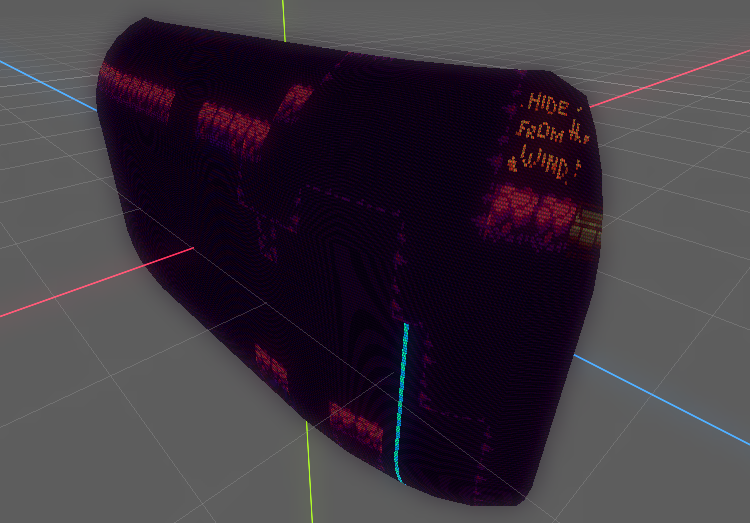

The warping at the edge of the screen is done by using a combination of sub-viewports and a viewport texture applied to a curved mesh. Note: If you’re having an issue with the 2d scene appearing in front of the 3d scene, be sure that the 2d scene is at the top of the hierarchy (first child of the subviewport container).

The actual CRT effect (screen door, chromatic aberration) is really just a small texture tiled across the screen and then multiplied against the original screen texture. Very very simple. You can fade the effect out by using the Mix() function with the original texture as the first parameter, and the combined crt and original textures as the second parameter, and then whatever value you want as the third parameter. Theoretically, you could even set up some sort of function to change this value based on the screen_uv and make the effect more or less visible at the edges of the screen.

The most subtle effect is the downscaling. I was having some issues with certain game elements not aligning to the pixel grid because secretly the game is being rendered at 1920 * 1080 and not 480 * 270. This means objects controlled by physics, and elements rendered through code (think line renderers) would not be aliased properly. This was hardly noticeable before I added the CRT effect, but after I added it that meant that there were instances where only have of a pixel would be lit up and it looked terrible!

My solution was to downsample the entire screen texture to make it so that every pixel would be made up of uniform sub-pixels. This had the added benefit of making the code-rendered elements look more cohesive with the existing art style.

Finally, the bloom. To really sell the feeling that you’re playing this game in a dark room late at night, I had to add a little glow. This was accomplished very easily using Godot’s built in bloom feature, which can be found as part of the World Environment node. Just add one of those bad boys to your 3d scene and observe as each pixel of your new crt screen glows comfortingly.

Here's the actual text of the shader: CRT.gdshader

Whelp… that’s all folks! Thanks for coming to my Ted Talk. Peace.
